Building a Fully Automatic Incremental Pipeline with Snowflake Document AI

Read Time:4 Minute, 13 Second

InsureTech Solutions processes thousands of car insurance policy documents daily. These policies arrive as PDFs from various sources – agents, brokers, and customers. Document AI is one of the most powerful capabilities inside Snowflake Cortex. While most demos show how to extract text from PDF files, the real value emerges when you operationalize Document AI inside an incremental ingestion pipeline. This solution uses Snowflake Streams on both Stages and Tables to create a fully incremental, event-driven pipeline. New files trigger automatic processing, and only changed data flows through the transformation layers.

In this blog, I will walk you through an end-to-end incremental Document AI ingestion framework that:

Automatically detects new document.
Extracts structured JSON using Document AI
Loads only new/changed files into a processing table
Parses attributes into a normalized table
Generates AI-based insights using Cortex Complete & Classify
Runs fully serverless using Stages, Streams, Tasks, and SQL stored procedures

Implementation Guide

Implementation Guide

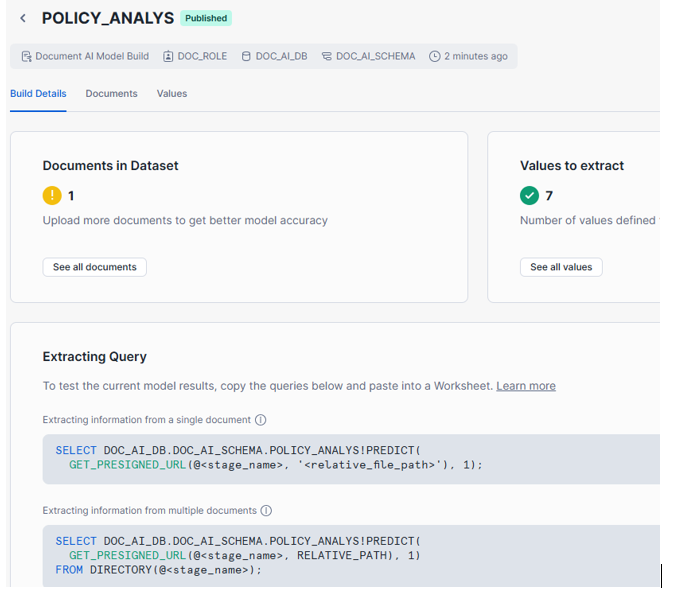

Create the Document AI model. I am not going to the detail as it is quite straight forward and refer other blogs. So the following model is created which reads my car insurance pdf file.

Step 1: Foundation Setup

CREATE DATABASE doc_ai_db;

CREATE SCHEMA doc_ai_db.doc_ai_schema;

CREATE OR REPLACE STAGE car_stage DIRECTORY = (ENABLE = TRUE) ENCRYPTION = (TYPE = 'SNOWFLAKE_SSE');

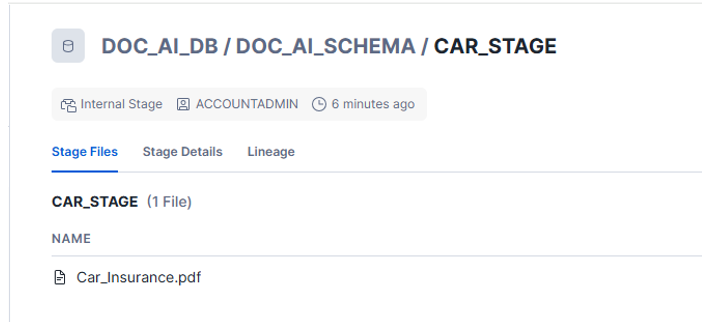

Now, Upload file to the stage.

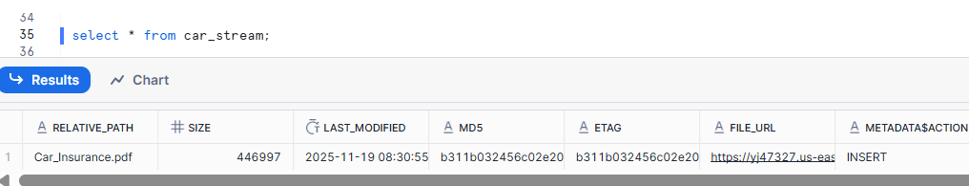

Step2: Create a Stream on the Stage

The stream captures only new files added to the stage.
This is the foundation of incremental Document AI pipelines.

CREATE OR REPLACE STREAM car_stream ON STAGE car_stage;

Step3:Raw Ingestion Table to Store Document AI Output

CREATE OR REPLACE TABLE car_insurance_details ( file_name VARCHAR, file_size VARIANT, last_modified VARCHAR, snowflake_file_url VARCHAR, upload_date DATE, json_content VARIANT );

Create a stream on this table for downstream processing:

CREATE OR REPLACE STREAM car_insurance_details_stm ON TABLE car_insurance_details;

Step 4: Automated Document AI Processing
CREATE OR REPLACE TASK load_new_car_insurance_data WAREHOUSE = compute_wh SCHEDULE = '1 minute' WHEN SYSTEM$STREAM_HAS_DATA('car_stream') -- Only run when new files exist AS INSERT INTO car_insurance_details ( SELECT RELATIVE_PATH AS file_name, size AS file_size, last_modified, file_url AS snowflake_file_url, CURRENT_DATE AS upload_date, POLICY_ANALYS!PREDICT( GET_PRESIGNED_URL('@car_stage', RELATIVE_PATH), 1 ) AS json_content -- Document AI magic happens here FROM car_stream WHERE METADATA$ACTION = 'INSERT' -- Process only new files );

Only incremental files from car_stream are processed.

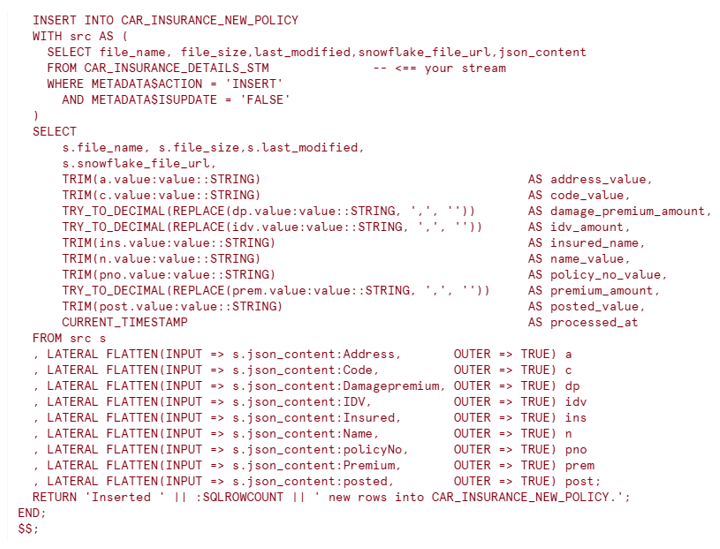

Step 5: Creating an Incremental Parser Using SQL Stored Procedure

This stored procedure checks if the final table exists, creates it if needed, and loads only incremental JSON rows from the stream.

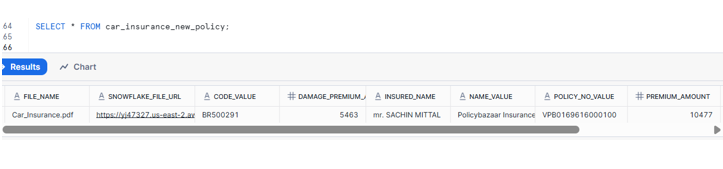

Step 6: Parse JSON into a Clean Table
CREATE OR REPLACE TASK parse_car_insurance_data WAREHOUSE = compute_wh AFTER load_new_car_insurance_data -- Task chaining AS CALL handle_car_insurance_policy();

Orchestration Flow:

New file uploaded → Stage stream captures it
Task 1 runs → Document AI extracts data
Table stream captures new row
Task 2 runs → Parses and structures data into Final table

Step 7: AI-Powered Enrichment with Cortex

Step 7: AI-Powered Enrichment with Cortex

This query enriches each policy with:

Risk category (High/Medium/Low)
Underwriting summary
Potential anomalies
Business explanation of risk

SELECT *, -- Risk Classification SNOWFLAKE.CORTEX.CLASSIFY_TEXT( 'Premium: ' || premium_amount || ', IDV: ' || idv_amount || ', Damage Premium: ' || damage_premium_amount, ARRAY_CONSTRUCT('High', 'Medium', 'Low') ) AS risk_category,

-- Policy Summary Generation SNOWFLAKE.CORTEX.COMPLETE( 'mistral-large', 'You are an insurance underwriter. Summarize this policy: ' || 'Policy No: ' || policy_no_value || ', Insured: ' || insured_name || ', Premium: ' || premium_amount ) AS policy_summary,

-- Anomaly Detection SNOWFLAKE.CORTEX.COMPLETE( 'mistral-large', 'Identify red flags for this policy: ' || 'Premium: ' || premium_amount || ', IDV: ' || idv_amount ) AS anomaly_notes

FROM car_insurance_new_policy;

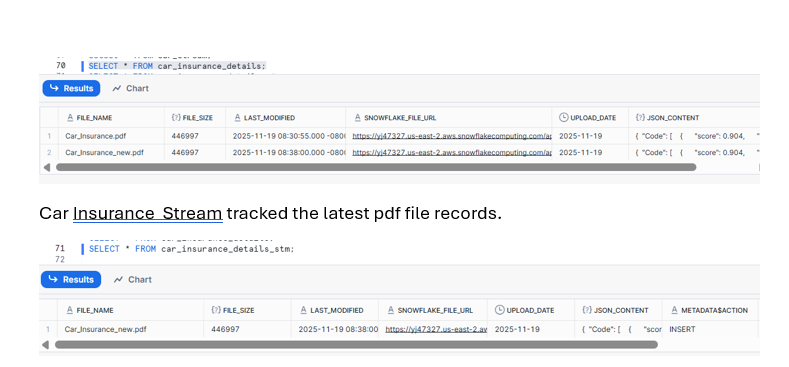

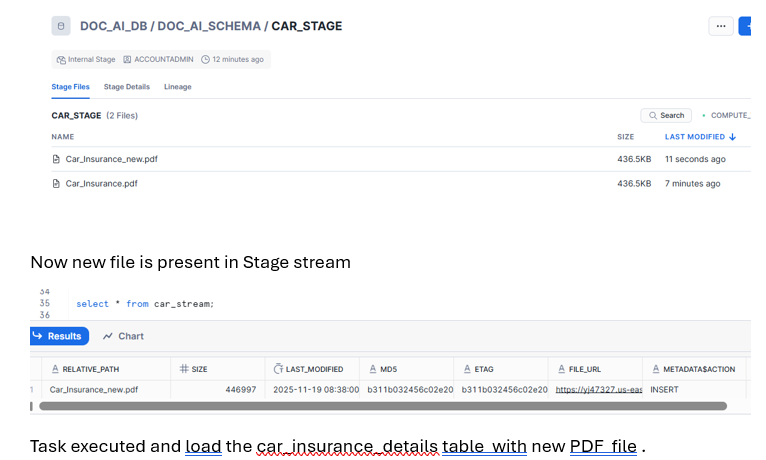

Next Day for Delta:

Now upload another file to the stage

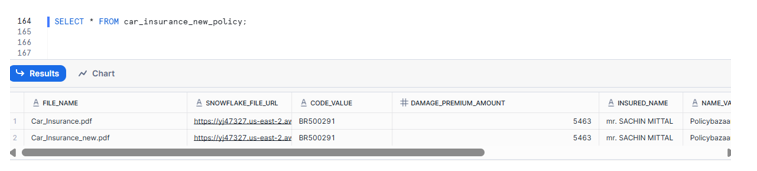

Execute the procedure and this will parse the data from new pdf and load the finaltargte table.

This architecture demonstrates how Snowflake Streams transform Document AI from a batch process into a real-time, event-driven pipeline. The combination of:
